Fog Cannon BY30

  • Home
  • > Fog Cannon BY30

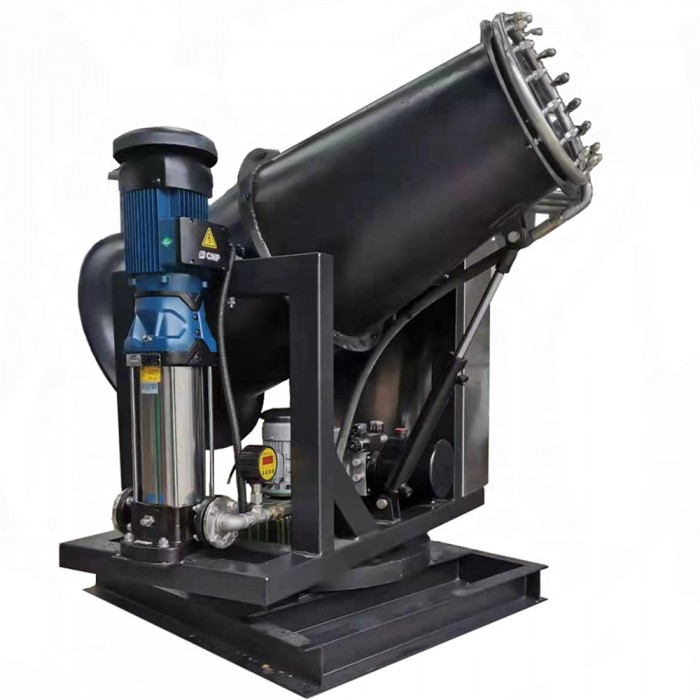

BY-30 Fog Cannon

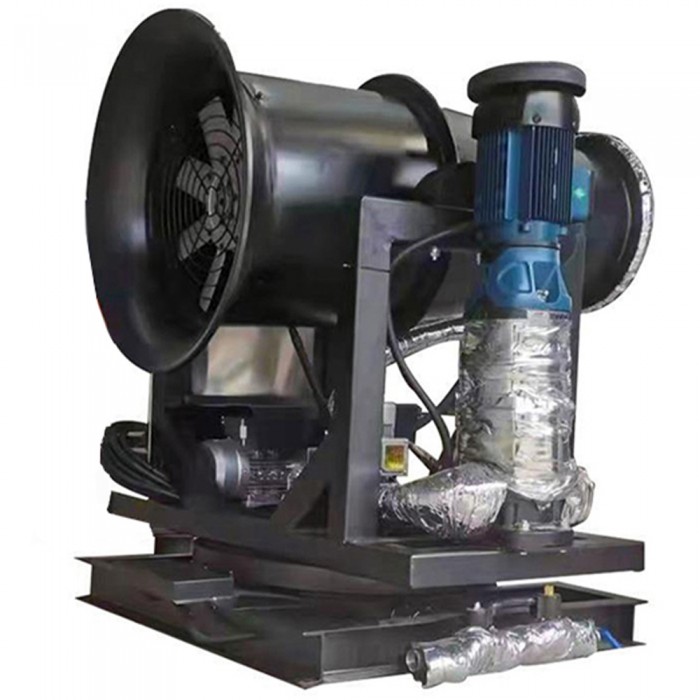

BY-30 Fog Cannon
BY-30 Fog Cannon
BY-30 Fog Cannon

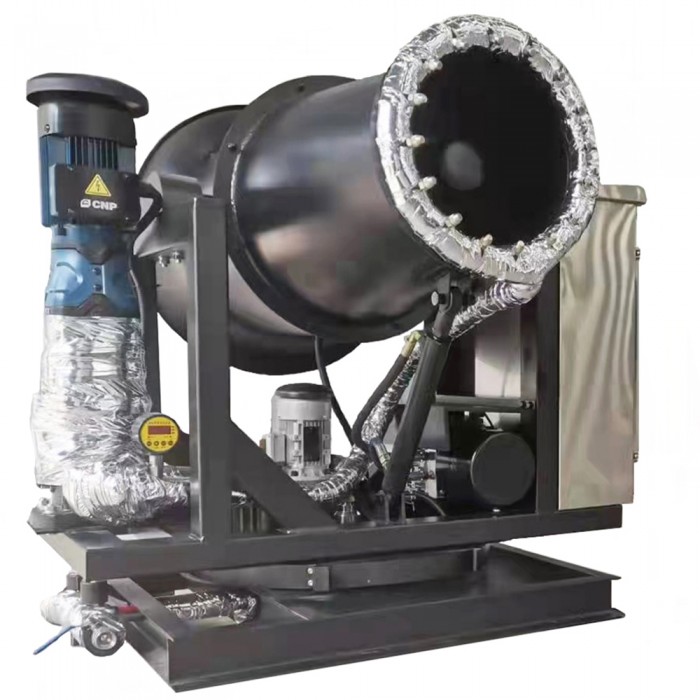

BY-30 Fog Cannon

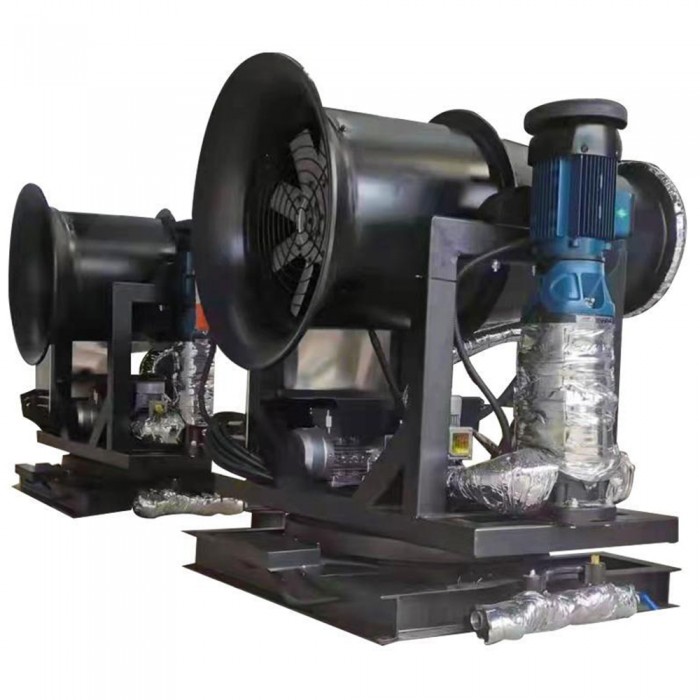

BY30

Fog Cannon BY30

1. Spray Distance                30m
2. Rated Power                   4KW
3. Fan Motor                       2Pole-2.2kw Hengli Brand
4. Electronic                        Siemens PLC +Remote Control ABB Or Schneider
5. Water Pump                    2Pole-1.5Kw CNP Brand,China
6. Water Consumption         2-3m³/h
7. Package Dimension         L1500mm*W1450mm*H1550mm
8. Gross Weight                   510Kgs

Specification ：

No Item Specification Remarks
1 Spray Distance 30m Testing Without Wind
2 Rated Power 4Kw 380V/50Hz
3 Fan Motor 2Pole-2.2kw Hengli Brand,YE3
4 Motor Degree IP55
5 Fan Drum   Φ462mm Thickness :2-4mm

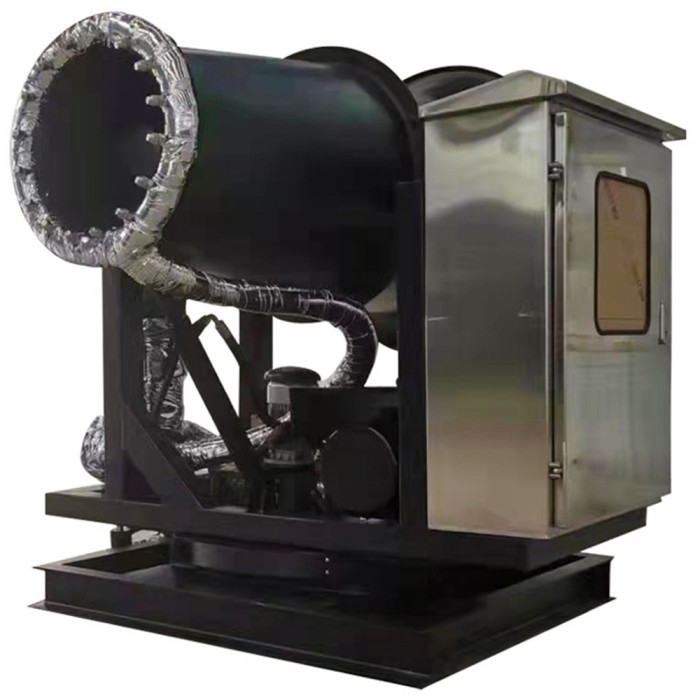

6 Control Cabinet Double Layer Stainless Steel 7Inch Touch Panel
7 Electronic PLC +Remote Control Main Parts
8 Water Pump 2Pole-1.5Kw NYP Brand,China
9 Water Consumption 2m³/h
10 Droplet Size 30-300μm
11 UP&Down Hydraulic
12 Protection System Limit + overload protection
13 Horizontal Rotation Hydraulic
14 Fan Blade Aluminum-magnesium alloy
15 Control On-site +100m remote control IP55
16 Pitching Angle (-5--+45)°
17 Horizontal Rotation Angle 0-320° Adjustable

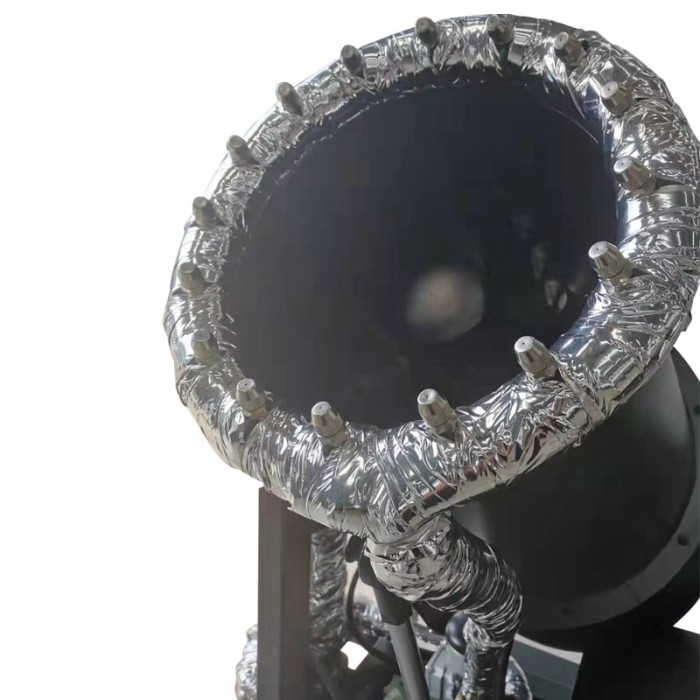

18 Spray Nozzle SS304 12Pieces,1.2mm Etc
19 Antifreeze measures Water pipe heating and insulation
20 Package Dimension L1500mm*W1450mm*H1550mm The basement has mounting holes
21 Gross Weight 510Kgs
22 Appearance spraying Powder Spraying
23 Water Supply  1inch pipeline,clean water source 0.3Mpa~0.5Mpa
